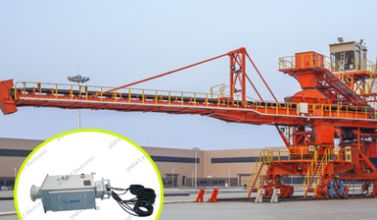

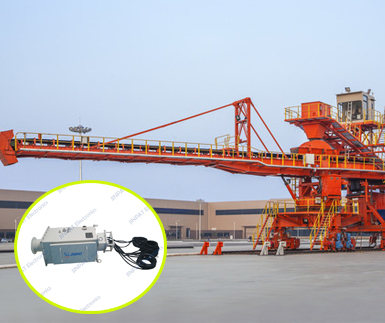

How a High-Current Slip Ring—Customized for Stackers—Achieves the Vision of "Zero Downtime"

I. Why Can't Standard Products Meet the Rigorous Demands of Stackers?

Stackers typically operate in harsh environments characterized by extremely high dust concentrations, severe vibration, and exposure to the elements (outdoor operations). The central column space, cable configuration, and current load requirements vary significantly for each individual piece of equipment. JINPAT firmly believes that only a "tailor-made", personalized solution can comprehensively resolve the two critical challenges of installation compatibility and long-term operational stability.

II. Core Structure Analysis: The Unique Advantages of Carbon Brush Technology

The core competitive advantage of this slip ring lies in its deeply optimized carbon brush contact system:

High Wear-Resistance Materials: Utilizing specially formulated silver-graphite or copper-graphite carbon brushes, this system not only ensures superior conductivity but also automatically generates a thin protective and self-lubricating film during rotation, thereby significantly extending the service life of the slip ring's conductive tracks.

Constant-Pressure Spring Mechanism: This mechanism ensures that the carbon brushes maintain a constant contact pressure against the copper rings throughout their entire wear cycle. This design effectively eliminates the risk of electrical arcing caused by poor contact—a critical safety safeguard in operating environments filled with flammable and explosive dust.

Open/Semi-Open Maintenance Windows: The engineering team has deliberately incorporated dedicated access ports into the design to facilitate rapid inspection and maintenance. This design eliminates the cumbersome process of disassembling the entire unit; engineers can complete carbon brush inspections or dust removal tasks in just a few minutes.

III. Detailed Overview of the Customization Process

Our engineering team will be deeply involved in your project from start to finish, providing comprehensive technical support:

Environmental Adaptability Assessment: For regions characterized by high temperatures and high humidity—such as India—we offer specialized anti-corrosion coating treatments and enhanced sealing solutions. Parameter Confirmation: We customize the appropriate insulation class based on the specific requirements of the actual operating voltage (e.g., 6 kV / 10 kV) and current load (up to several hundred amperes).

Structural Adaptation: We offer a variety of flexible mounting options—including flange mounting and shaft mounting—to ensure seamless integration with your existing mechanical infrastructure.
